INI Australia is the provider of highly-durable, German-engineered air winches for almost any commercial, industrial or offshore application. Generally, these types of winches provide superior lifting and pulling power than air or electric varieties. Hydraulic winches are suitable for nearly every application, making them the perfect choice for any job.
Please select from the following products:
Up to 5 tonne

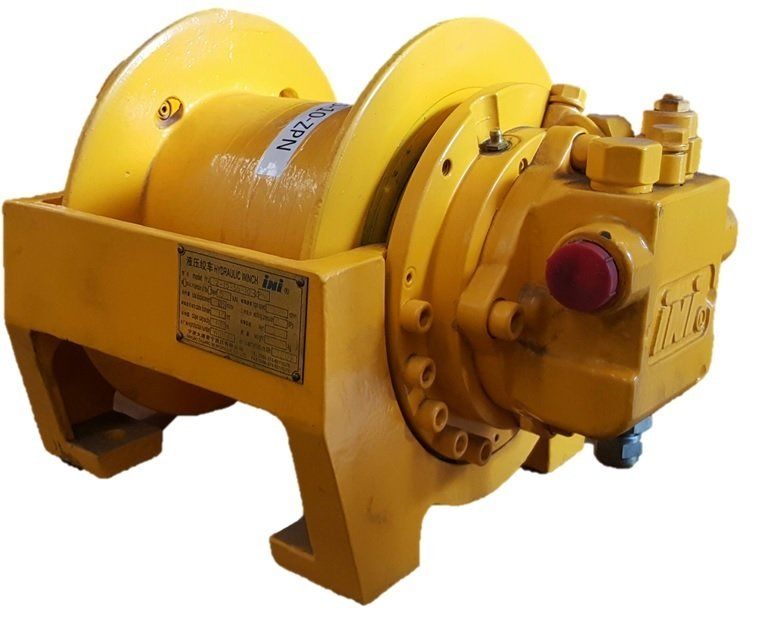

1.5 tonne Compact Hydraulic Winch
Line Pull 1st Layer (tonne): 1.5
Line Speed (m/min): 23
Rope Diameter (mm): 6
Rope Capacity (m): 55
System Pressure (bar): 150
Required Flow (L/min): 40
Brake Type: Failsafe Brake
Dimensions (mm): 351 x 310 x 285.8

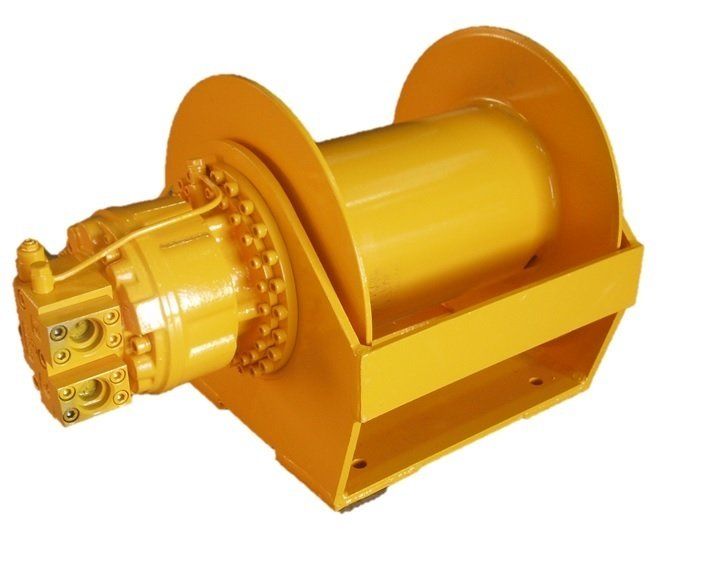

1 tonne Compact Hydraulic Winch
Line Pull 1st Layer (tonne): 1
Line Speed (m/min): 28.5
Rope Diameter (mm): 8
Rope Capacity (m): 65
System Pressure (bar): 130
Required Flow (L/min): 40
Brake Type: Failsafe Brake
Dimensions (mm): 342 x 310 x 285.8

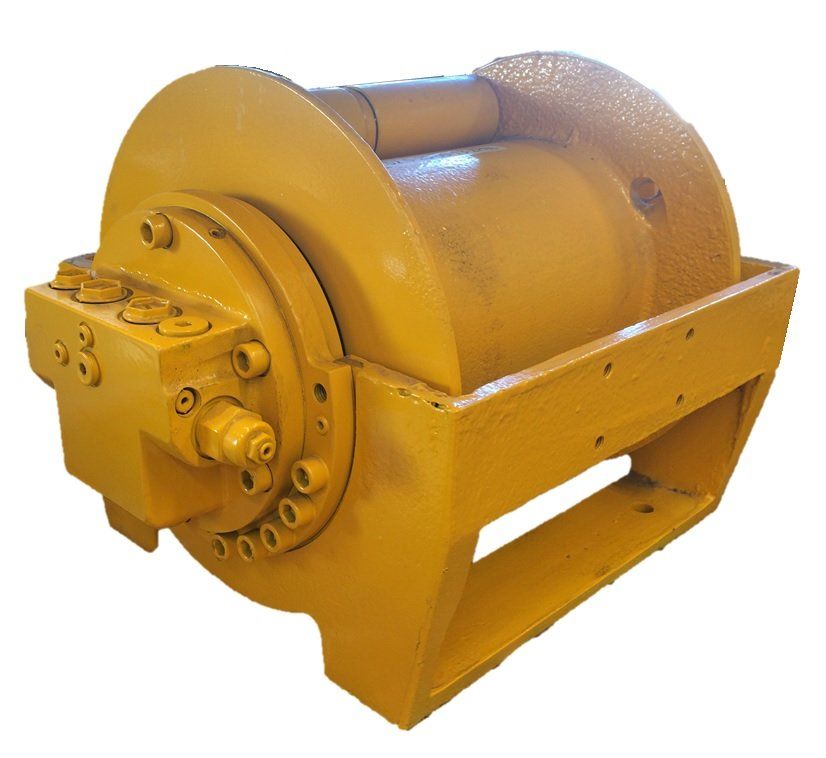

2 tonne Hydraulic Winch
Line Pull 1st Layer (tonne): 2
Line Speed (m/min): 30
Rope Diameter (mm): 13
Rope Capacity (m): 50
System Pressure (bar): 170
Required Flow (L/min): 60
Brake Type: Failsafe Disc Brake
Dimensions (mm): 476 x 386 x 350
2.5 tonne Compact Hydraulic Winch
Line Pull 1st Layer (tonne): 2.5
Line Speed (m/min): 40
Rope Diameter (mm): 10
Rope Capacity (m): 59
System Pressure (bar): 170
Required Flow (L/min): 75
Brake Type: Failsafe Brake
Dimensions (mm): 366 x 310 x 285.8

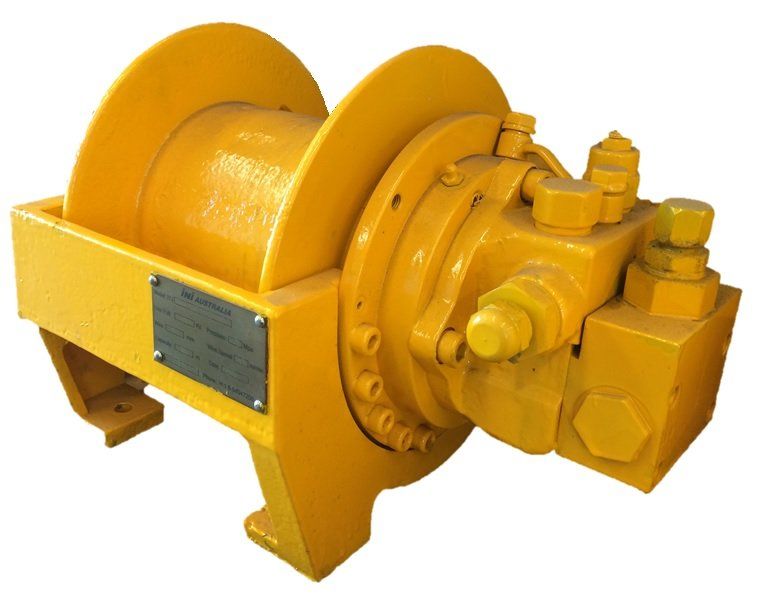

2 tonne Hydraulic Winch
Line Pull 1st Layer (tonne): 2
Line Speed (m/min): 23
Rope Diameter (mm): 12
Rope Capacity (m): 36
System Pressure (bar): 180
Required Flow (L/min): 44
Brake Type: Failsafe Brake
Dimensions (mm): 476 x 386 x 350

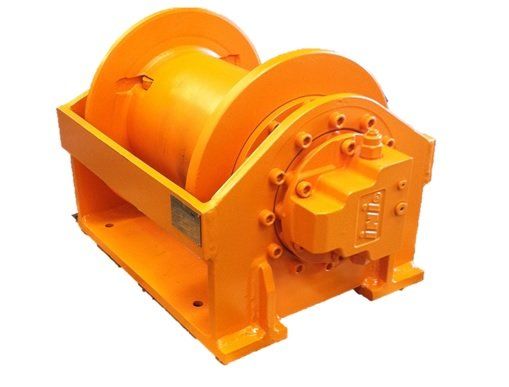

3.2 tonne Hydraulic Winch
Line Pull 1st Layer (tonne): 3.2
Line Speed (m/min): 35
Rope Diameter (mm): 14
Rope Capacity (m): 85
System Pressure (bar): 150
Required Flow (L/min): 100
Brake Type: Failsafe Brake
Dimensions (mm): 476 x 386 x 350

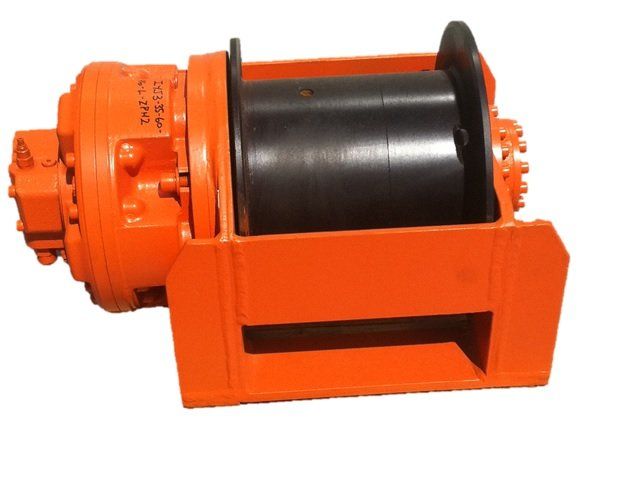

3.5 tonne Freefall Hydraulic Winch
Line Pull 1st Layer (tonne): 3.5
Line Speed (m/min): 60
Rope Diameter (mm): 16
Rope Capacity (m): 60
System Pressure (bar): 185
Required Flow (L/min): 171
Brake Type: Failsafe Brake
Dimensions (mm): 782 x 494 x 465

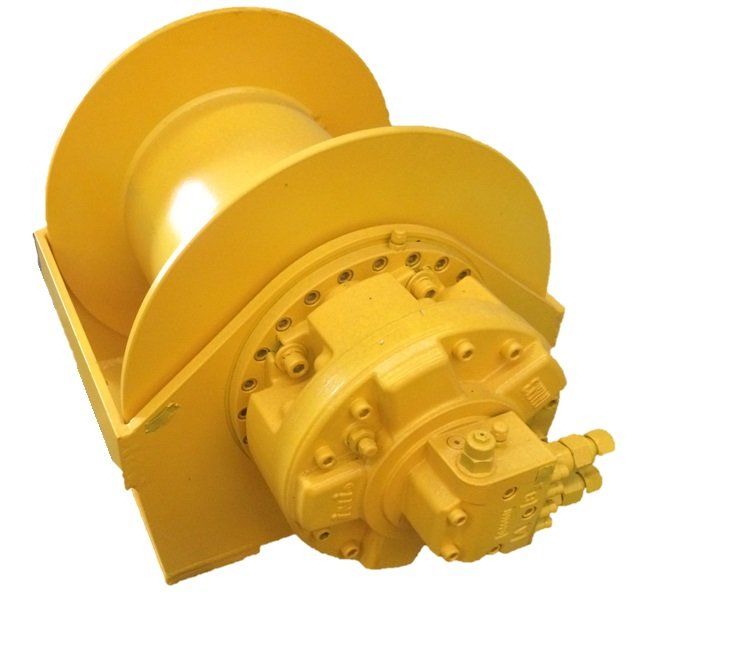

5T Hydraulic Winch
Line Pull 1st Layer (tonne): 5
Line Speed (m/min): 10
Rope Diameter (mm): 14
Rope Capacity (m): 400
System Pressure (bar): 180
Required Flow (L/min): 40
Brake Type: Failsafe Brake
Dimensions (mm): 910 x 744 x 723

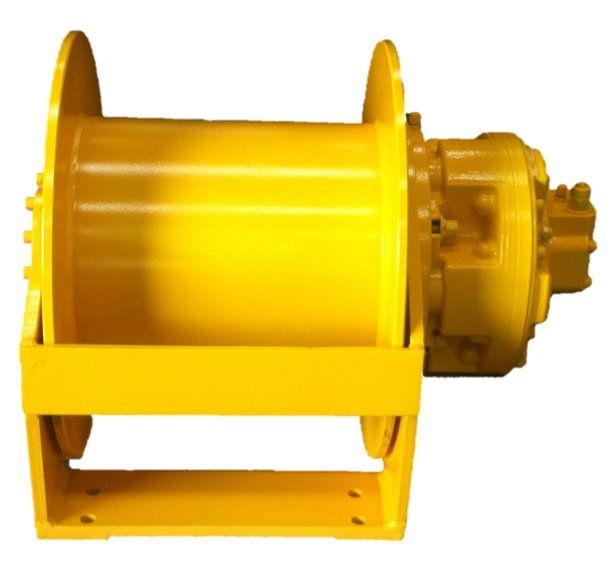

5T Hydraulic Winch
Line Pull 1st Layer (tonne): 5
Line Speed (m/min): 35
Rope Diameter (mm): 18
Rope Capacity (m): 140
System Pressure (bar): 180
Required Flow (L/min): 136
Brake Type: Failsafe Brake
Dimensions (mm): 901 x 682 x 655

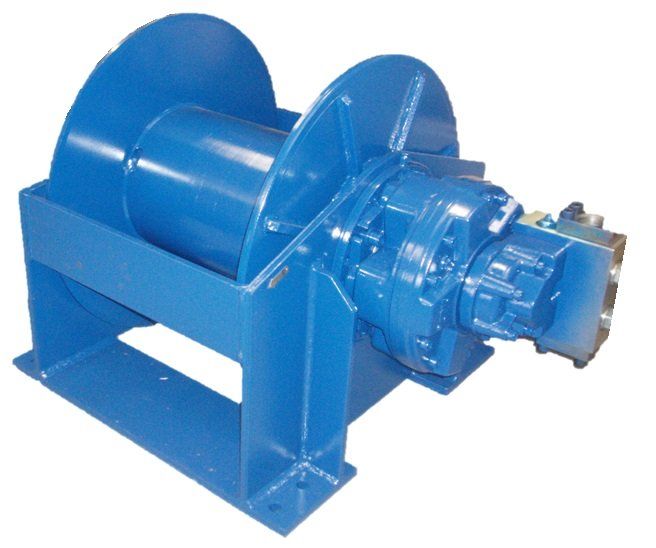

5T Hydraulic Trawl Winch
Line Pull 1st Layer (tonne): 5
Line Speed (m/min): 60
Rope Diameter (mm): 16
Rope Capacity (m): 700
System Pressure (bar): 180
Required Flow (L/min): 158
Brake Type: Failsafe Brake
Dimensions (mm): 1097 x 886 x 854
5.1 - 10 tonne

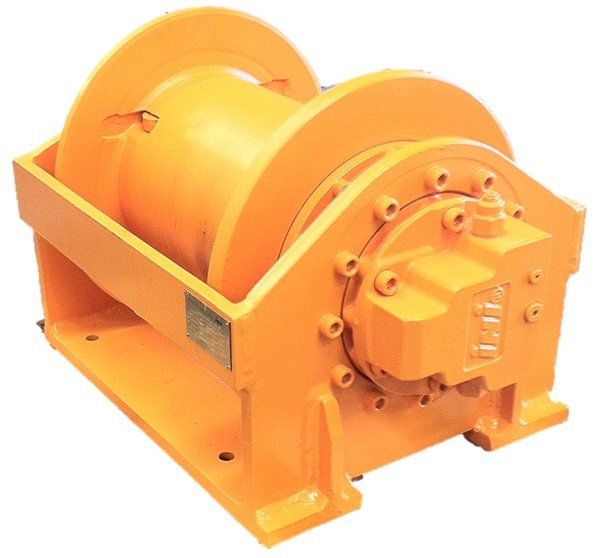

5.7 tonne Compact Hydraulic Winch
Line Pull 1st Layer (tonne): 5.7
Line Speed (m/min): 35
Rope Diameter (mm): 16
Rope Capacity (m): 81
System Pressure (bar): 270
Required Flow (L/min): 100
Brake Type: Failsafe Brake
Dimensions (mm): 476 x 386 x 350

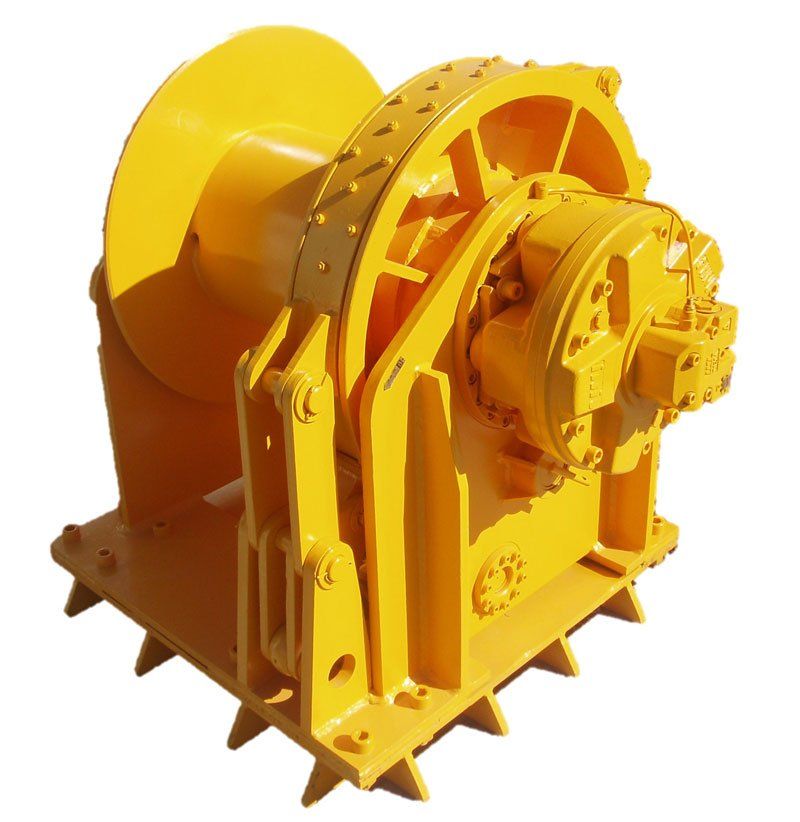

7T Hydraulic Winch /w Double Brake
Line Pull 1st Layer (tonne): 7
Line Speed (m/min): 40
Rope Diameter (mm): 1
Rope Capacity (m): 400
System Pressure (bar): 150
Required Flow (L/min): 50
Brake Type: Failsafe Brake & brake band
Dimensions (mm): 1184 x 965 x 1027

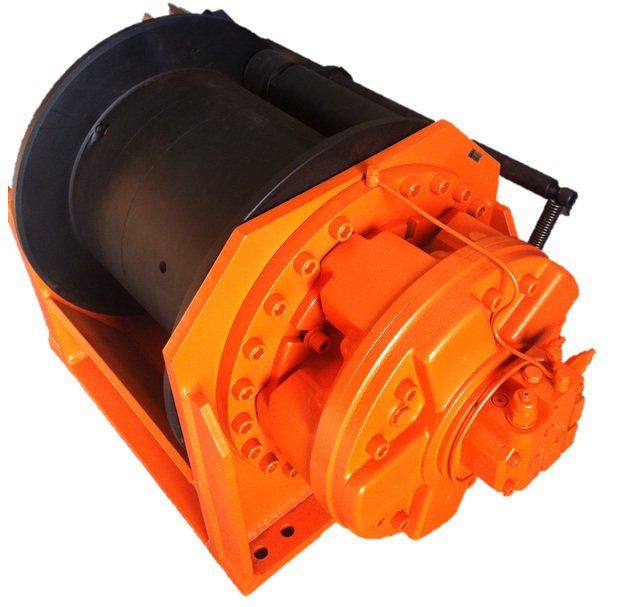

7T Hydraulic Freefall Winch
Line Pull 1st Layer (tonne): 7
Line Speed (m/min): 25
Rope Diameter (mm): 22
Rope Capacity (m): 100
System Pressure (bar): 140
Required Flow (L/min): 130
Brake Type: Failsafe Brake
Dimensions (mm): 1044 X 768 X 720

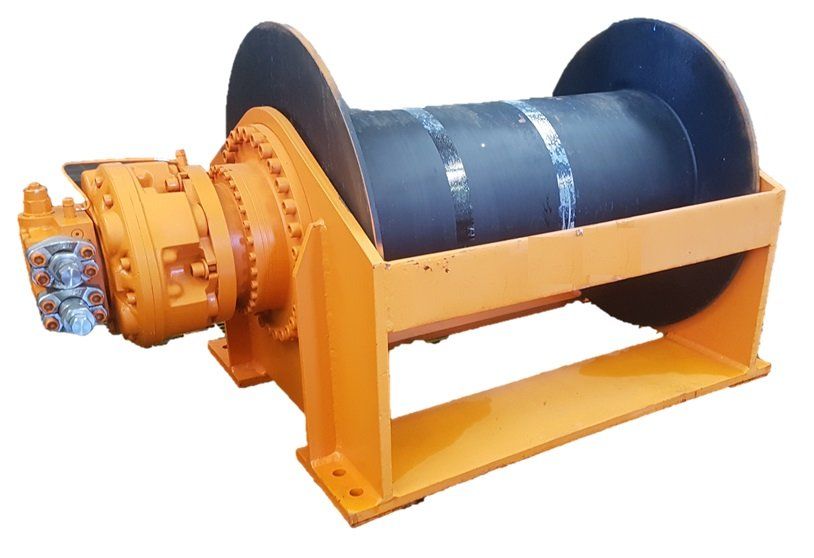

8T Hydraulic Winch
Line Pull 1st Layer (tonne): 8
Line Speed (m/min): 20
Rope Diameter (mm): 26
Rope Capacity (m): 500
System Pressure (bar): 160
Required Flow (L/min): 230
Brake Type: Failsafe Brake
Dimensions (mm): 1710 x 986 x 930

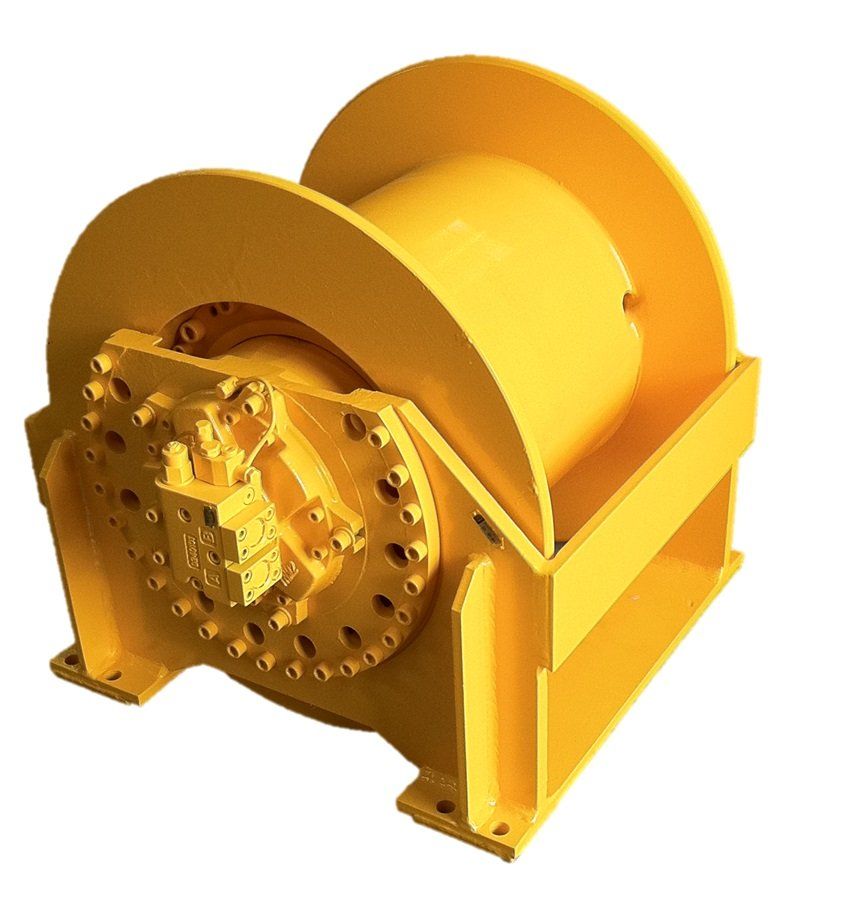

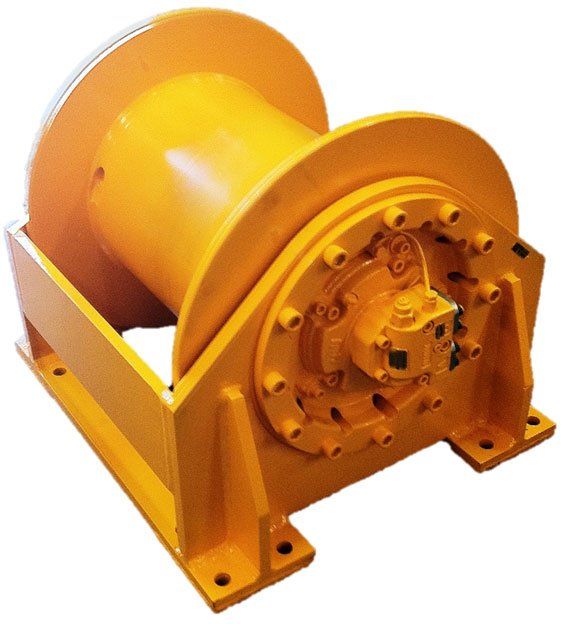

10T Hydraulic Winch
Line Pull 1st Layer (tonne): 10
Line Speed (m/min): 15
Rope Diameter (mm): 24
Rope Capacity (m): 169
System Pressure (bar): 200
Required Flow (L/min): 108
Brake Type: Failsafe Brake
Dimensions (mm): 875 x 856 x 810
10T Hydraulic Winch
Line Pull 1st Layer (tonne): 10
Line Speed (m/min): 9
Rope Diameter (mm): 24
Rope Capacity (m): 90
System Pressure (bar): 180
Required Flow (L/min): 80
Brake Type: Failsafe Brake
Dimensions (mm): 794 x 700 x 660

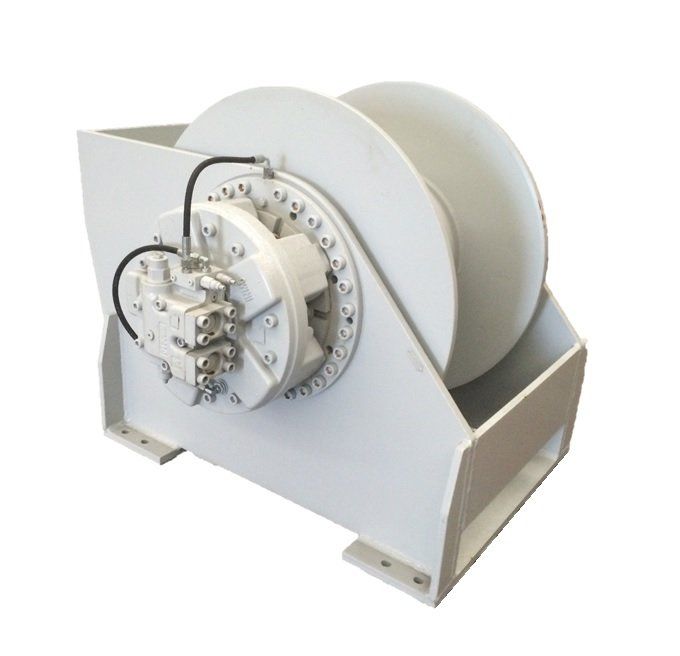

10T Hydraulic Freefall Winch
Line Pull 1st Layer (tonne): 10
Line Speed (m/min): 40
Rope Diameter (mm): 20
Rope Capacity (m): 350
System Pressure (bar): 200
Required Flow (L/min): 280
Brake Type: Failsafe Brake
Dimensions (mm): 1215 X 1272 X 1213
10.1 - 30 tonne

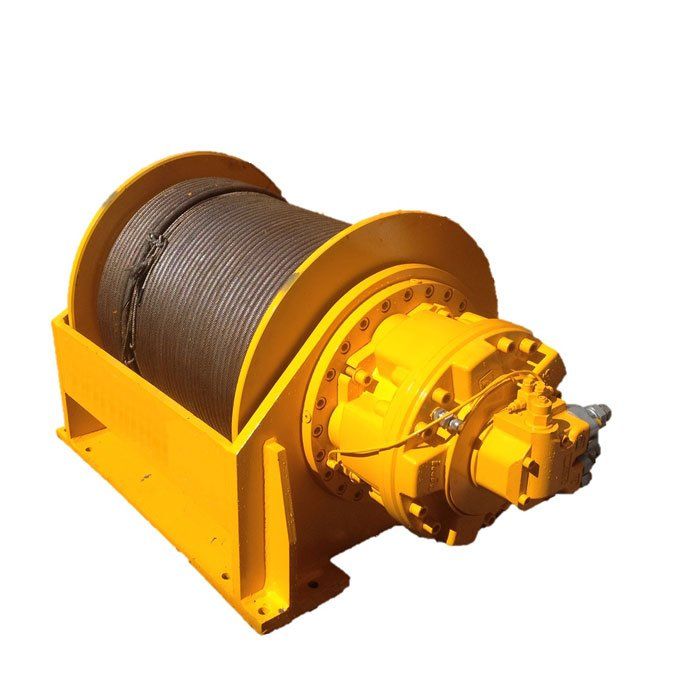

15T Hydraulic Winch
Line Pull 1st Layer (tonne): 15
Line Speed (m/min): 28
Rope Diameter (mm): 30
Rope Capacity (m): 155
System Pressure (bar): 220
Required Flow (L/min): 280
Brake Type: Failsafe Brake
Dimensions (mm): 1468 x 930 x 880

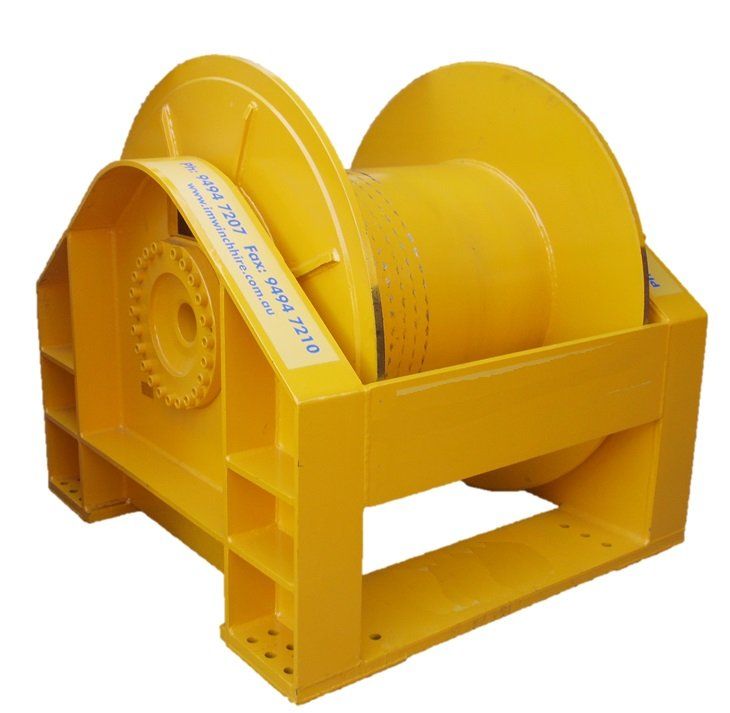

30T Hydraulic Winch
Line Pull 1st Layer (tonne): 30
Line Speed (m/min): 11
Rope Diameter (mm): 46
Rope Capacity (m): 253
System Pressure (bar): 160
Required Flow (L/min): 320
Brake Type: Hydraulic Failsafe brake
Dimensions (mm): 794 x 700 x 660
45 -75 tonne

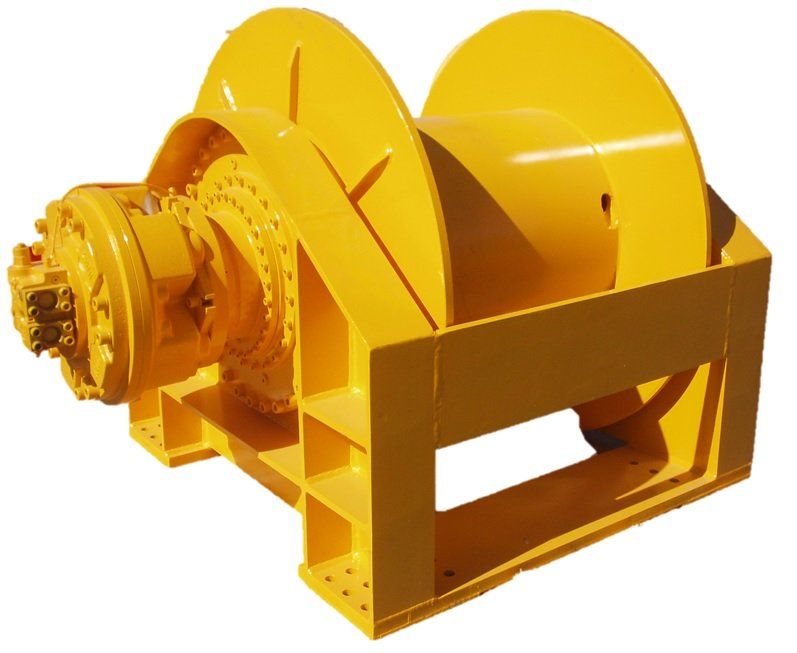

55T Hydraulic Winch
Line Pull 1st Layer (tonne): 55
Line Speed (m/min): 7
Rope Diameter (mm): 52
Rope Capacity (m): 261
System Pressure (bar): 175
Required Flow (L/min): 320
Brake Type: Hydraulic Failsafe Brake
Dimensions (mm): 2197 x 1590 x 1525
We take pride in offering the best winches available
