If you are in the fishing industry, you know completing the job depends on reliable equipment. We specialise in providing dependable, German-engineered winches that meet the highest standards of design and manufacturing. Our experts are ready to lend their advice and expertise to help you choose the best fishing winch for your vessel. Contact us today!
Please select from the following products:
Up to 5 tonne

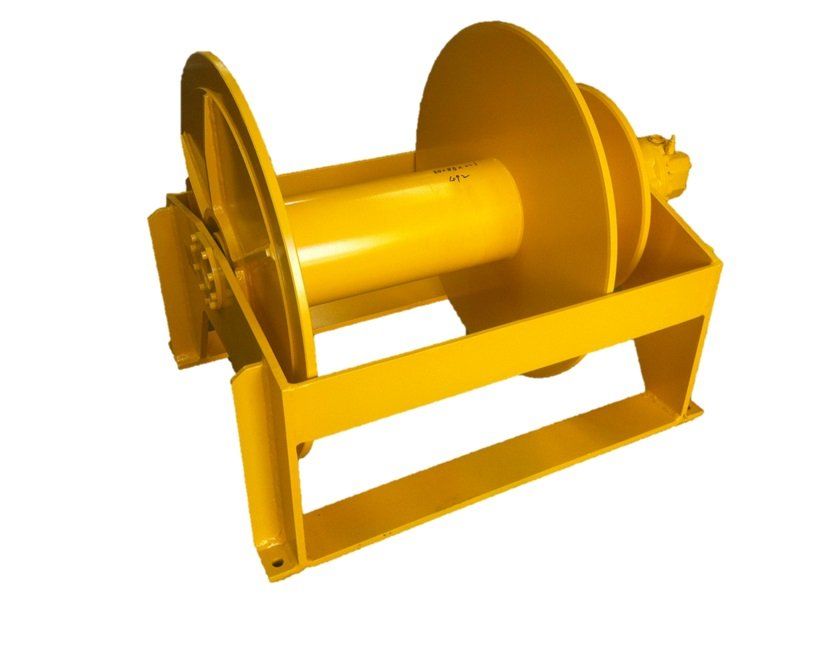

1.5T Hydraulic Long Line Winch
Line Pull 1st Layer (tonne): 1.5
Line Speed (m/min): 0-41
Rope Diameter (mm): 6
Rope Capacity (m): 600 - 6000
System Pressure (bar): 160
Required Flow (L/min): 60
Brake Type: Failsafe Brake
Dimensions (mm): 1274 x 860 x 850

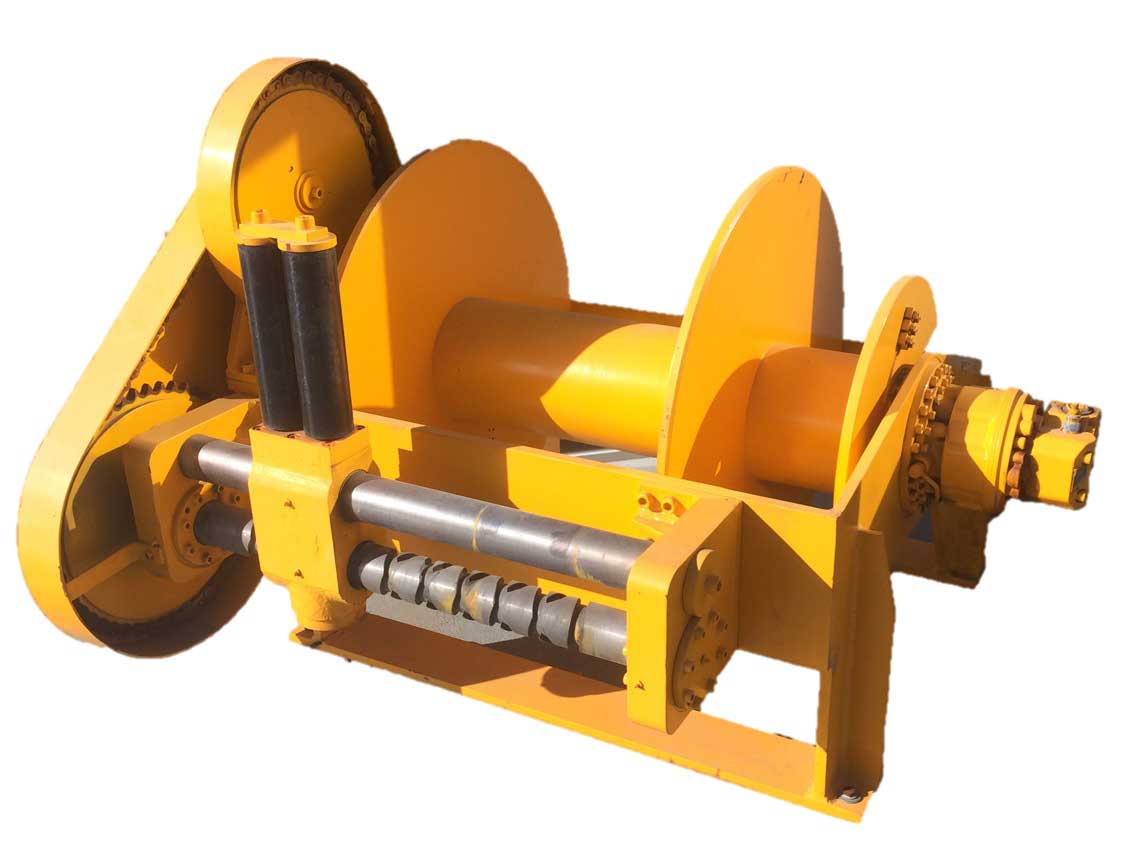

1.5T Long Line Hydraulic Winch /w Spooling
Line Pull 1st Layer (tonne): 1.5
Line Speed (m/min): 0-41
Rope Diameter (mm): 6
Rope Capacity (m): 600 - 6000
System Pressure (bar): 160
Required Flow (L/min): 60
Brake Type: Failsafe Brake
Dimensions (mm): 1274 x 1210 x 850
2 tonne Hydraulic Try Winch
Line Pull 1st Layer (tonne): 2
Line Speed (m/min): 30
Rope Diameter (mm): 12
Rope Capacity (m): 102
System Pressure (bar): 160
Required Flow (L/min): 58
Brake Type: Failsafe Brake
Dimensions (mm): 687 X 465

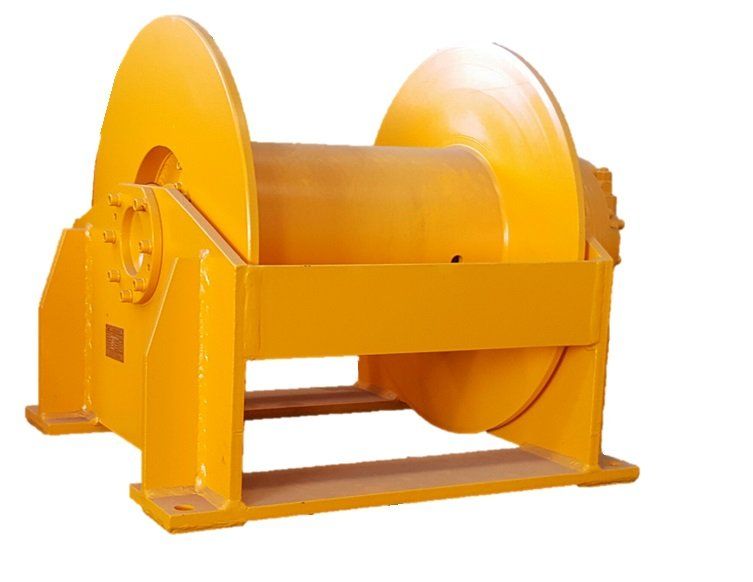

4 tonne hydraulic cod end winch
Line Pull 1st Layer (tonne): 4
Line Speed (m/min): 62
Rope Diameter (mm): 25
Rope Capacity (m): 120
System Pressure (bar): 184
Required Flow (L/min): 195
Brake Type: Failsafe Brake
Dimensions (mm): 1024 x 680 x 670

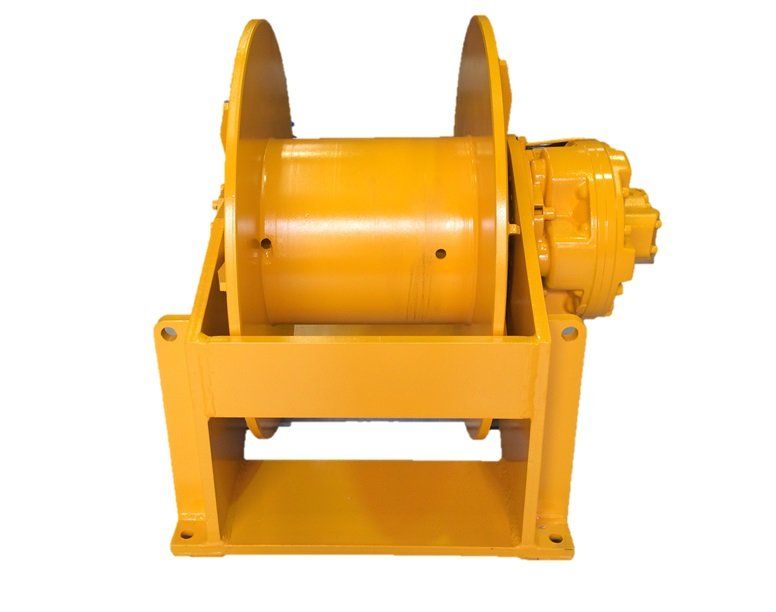

4.5 tonne Hydraulic Trawl Winch
Line Pull 1st Layer (tonne): 4.5
Line Speed (m/min): 33
Rope Diameter (mm): 14
Rope Capacity (m): 1000
System Pressure (bar): 150
Required Flow (L/min): 132
Brake Type: Failsafe Brake
Dimensions (mm): 1036 x 1015 x 975
5T Hydraulic Trawl Winch
Line Pull 1st Layer (tonne): 5
Line Speed (m/min): 33
Rope Diameter (mm): 14
Rope Capacity (m): 1000
System Pressure (bar): 170
Required Flow (L/min): 150
Brake Type: Failsafe Brake
Dimensions (mm): 1036 x 1015 x 975
5.1 - 10 tonne

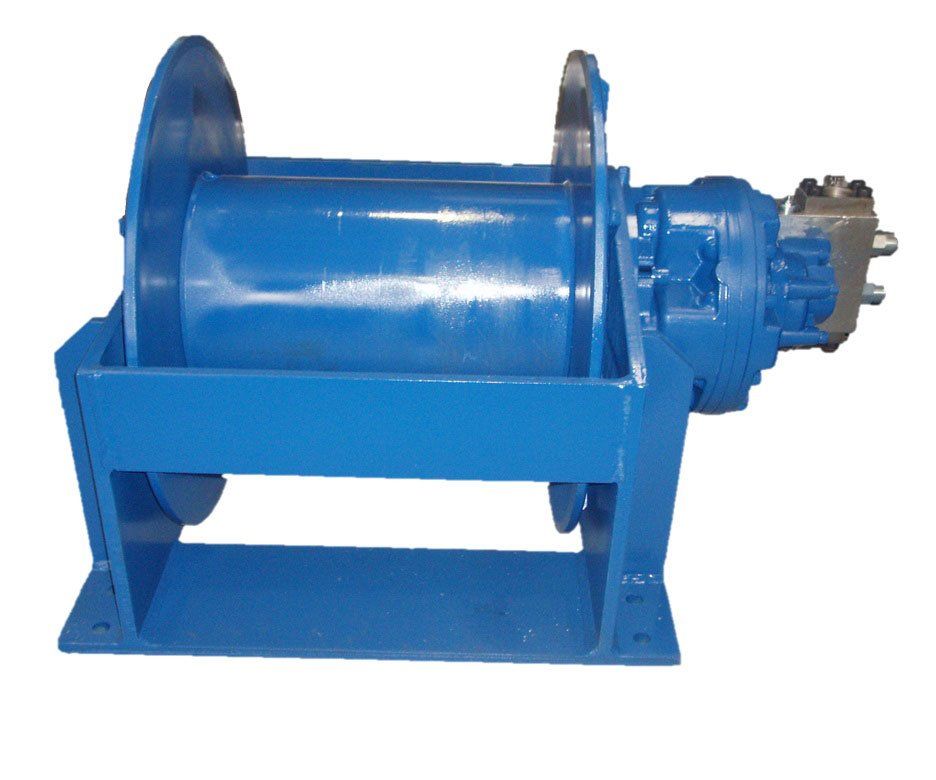

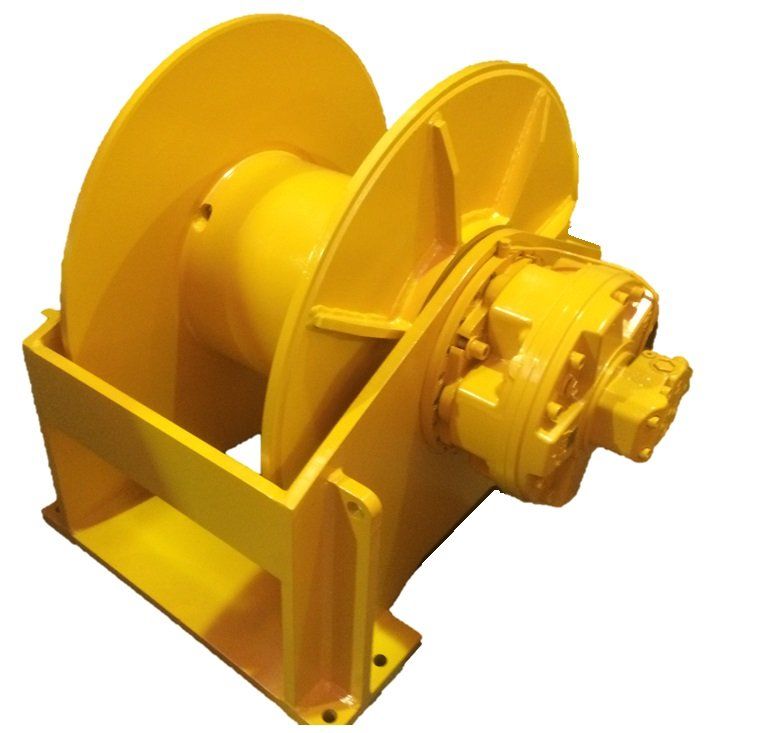

6T Hydraulic Trawl Winch
Line Pull 1st Layer (tonne): 6
Line Speed (m/min): 60
Rope Diameter (mm): 16
Rope Capacity (m): 700
System Pressure (bar): 195
Required Flow (L/min): 180
Brake Type: Failsafe Brake
Dimensions (mm): 1269 x 886 x 854
7T Hydraulic Trawl Winch
Line Pull 1st Layer (tonne): 7
Line Speed (m/min): 60
Rope Diameter (mm): 16
Rope Capacity (m): 700
System Pressure (bar): 180
Required Flow (L/min): 222
Brake Type: Failsafe Brake
Dimensions (mm): 1134 x 886 x 854

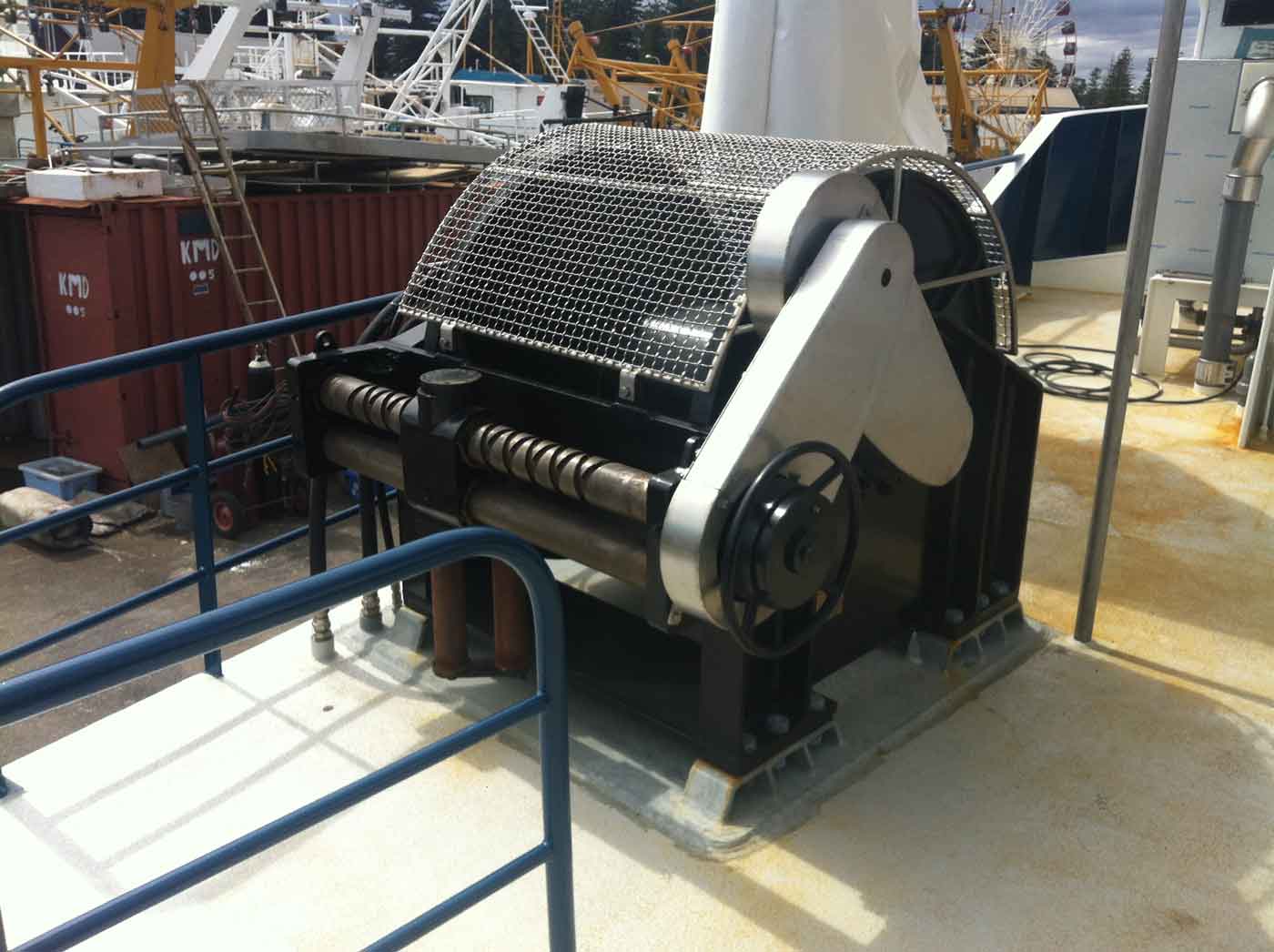

10T Hydraulic Trawl Winch /w Spooling
Line Pull 1st Layer (tonne): 10
Line Speed (m/min): 40
Rope Diameter (mm): 16
Rope Capacity (m): 1800
System Pressure (bar): 210
Required Flow (L/min): 162
Brake Type: Failsafe Brake
Dimensions (mm): 1584 x 1522 x 1102
We use laser-guided measuring to inspect each winch
