Those working in the marine industry recognise that having reliable winches is important to quickly and correctly finishing the job. INI Australia offers marine winches for most purposes, including mooring and towing. When you need a winch that functions even in the toughest conditions, come to us; we’ll ensure you have the equipment you need.
Please select from the following products:
Mooring winches

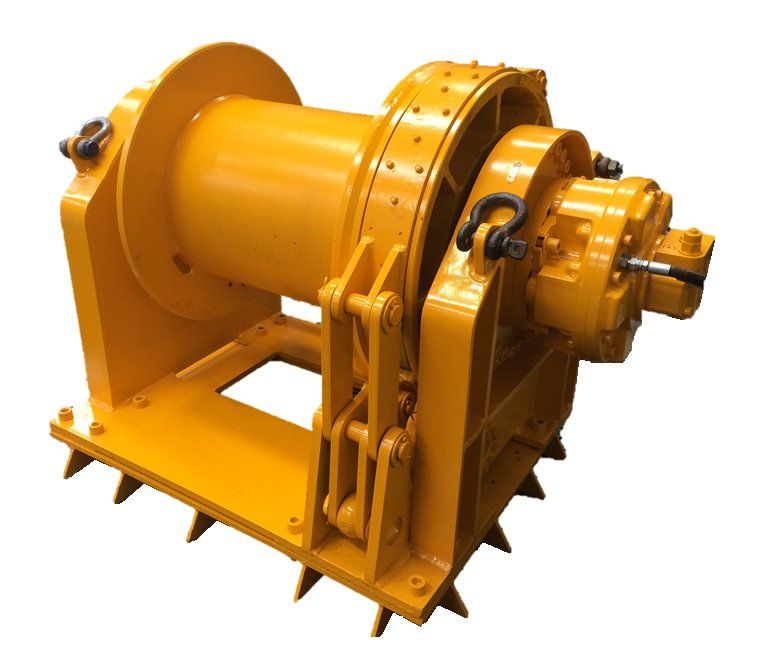

10T Hydraulic Mooring Winch
Line Pull 1st Layer (tonne): 10
Line Speed (m/min): 10
Brake Holding Capacity (tonne): 27
Rope Diameter (mm): 24
Rope Capacity (m): 70
System Pressure (bar): 160
Required Flow (L/min): 97
Brake Type: Hydraulic Band Brake
Clutch Type: Hydraulic
Dimensions (mm): 1230 x 965 x 1065

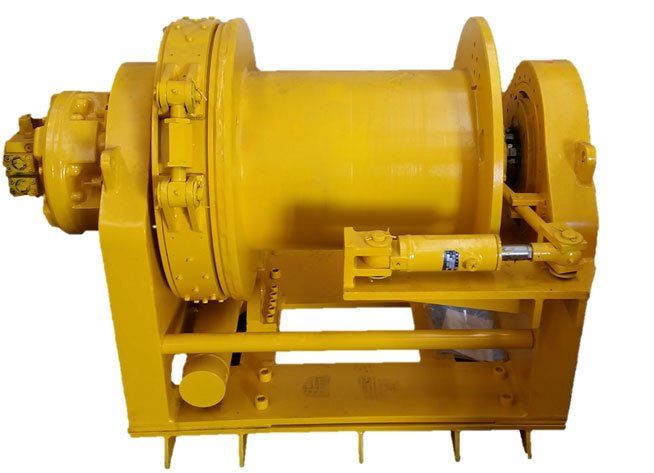

15T Hydraulic Mooring Winch
Line Pull 1st Layer (tonne): 15
Line Speed (m/min): 15
Brake Holding Capacity (tonne): 42
Rope Diameter (mm): 30
Rope Capacity (m): 350
System Pressure (bar): 190
Required Flow (L/min): 166
Brake Type: Hydraulic Band Brake
Clutch Type: Hydraulic
Dimensions (mm): 1760 x 1320 x 1467

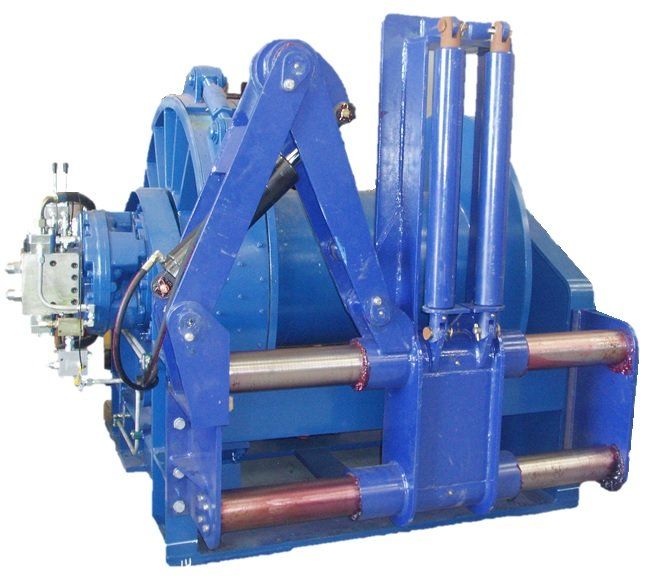

20T Hydraulic Mooring Winch /w Spooling
Line Pull 1st Layer (tonne): 20
Line Speed (m/min): 12
Brake Holding Capacity (tonne): 59
Rope Diameter (mm): 38
Rope Capacity (m): 500
System Pressure (bar): 160
Required Flow (L/min): 236
Brake Type: Hydraulic Band Brake
Clutch Type: Hydraulic
Dimensions (mm): 2268 x 1085 x 1765

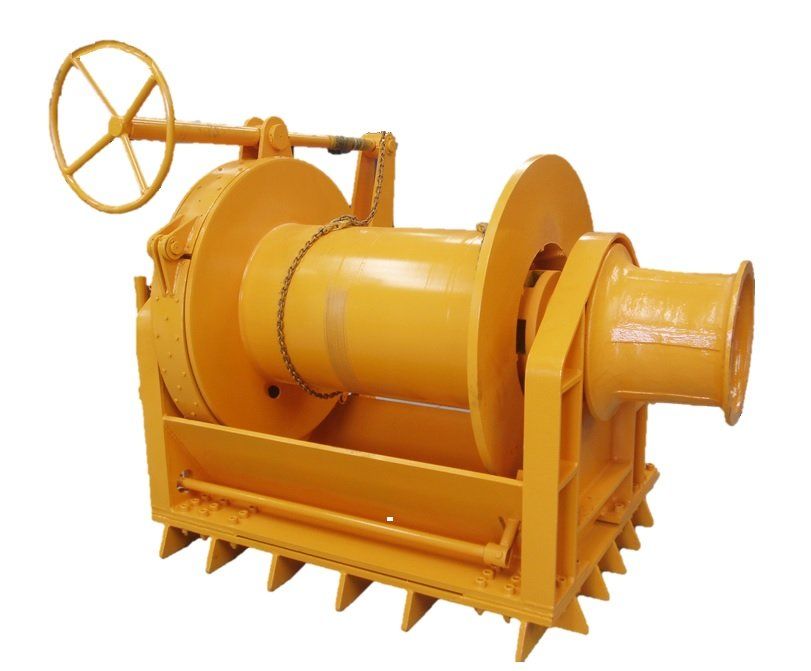

20T Hydraulic Mooring Winch /w capstan
Line Pull 1st Layer (tonne): 20
Line Speed (m/min): 12
Brake Holding Capacity (tonne): 59
Rope Diameter (mm): 41
Rope Capacity (m): 268
System Pressure (bar): 155
Required Flow (L/min): 268
Brake Type: Manual band brake
Clutch Type: Manual
Dimensions (mm): 2457 x 1525 x 1922.5

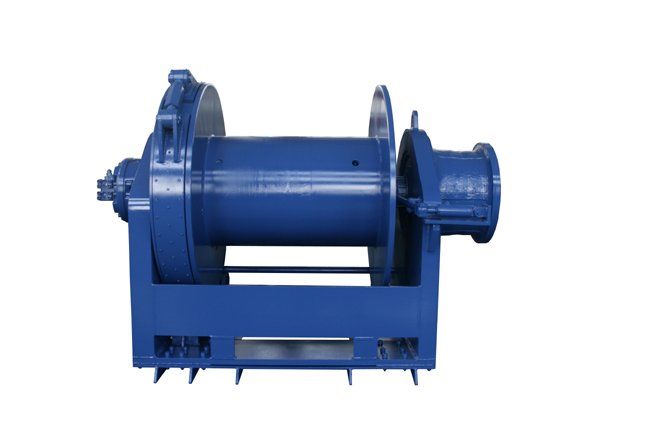

30T Hydraulic Mooring Winch /w capstan
Line Pull 1st Layer (tonne): 30
Line Speed (m/min): 10
Brake Holding Capacity (tonne): 90
Rope Diameter (mm): 32
Rope Capacity (m): 600
System Pressure (bar): 170
Required Flow (L/min): 260
Brake Type: Hydraulic band brake
Clutch Type: Hydraulic
Dimensions (mm): 2951 x 1990 x 2080
Towing winches
20T Hydraulic Towing Winch
Line Pull 1st Layer (tonne): 20
Line Speed (m/min): 12
Brake Holding Capacity (tonne): 59
Rope Diameter (mm): 41
Rope Capacity (m): 268
System Pressure (bar): 155
Required Flow (L/min): 268
Brake Type: Manual band brake
Clutch Type: Manual
Dimensions (mm): 2089 x 1525 x 1922.5

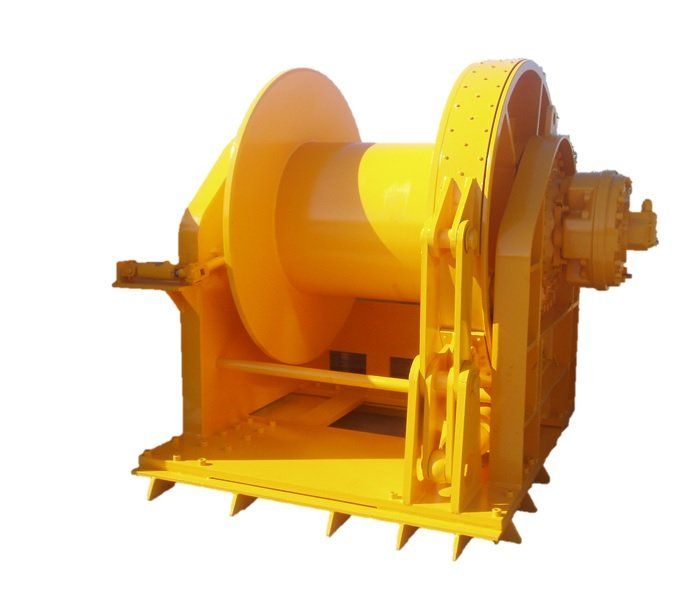

40T Hydraulic Towing Winch
Line Pull 1st Layer (tonne): 40
Line Speed (m/min): 10
Brake Holding Capacity (tonne): 108
Rope Diameter (mm): 50
Rope Capacity (m): 400
System Pressure (bar): 170
Required Flow (L/min): 370
Brake Type: Hydraulic band brake
Clutch Type: Hydraulic
Dimensions (mm): 2260 x 1990 x 2080
50T Hydraulic Towing Winch
Line Pull 1st Layer (tonne): 50
Line Speed (m/min): 10
Rope Diameter (mm): 36
Rope Capacity (m): 300
System Pressure (bar): 195
Required Flow (L/min): 377
Brake Type: Hydraulic Band Brake
Dimensions (mm): 2638 x 1990 x 2080

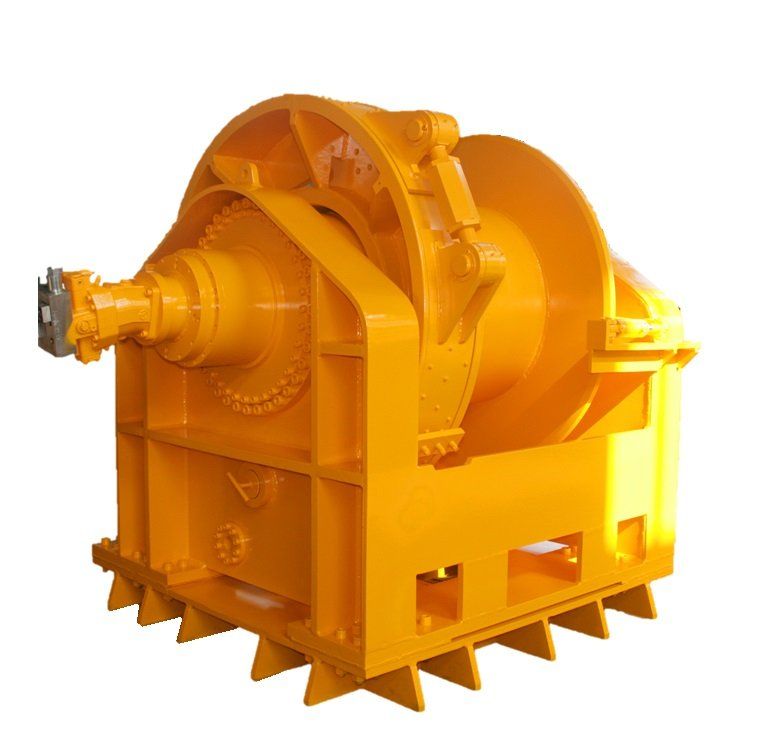

75T Hydraulic Towing Winch
Line Pull 1st Layer (tonne): 75 / 150
Line Speed (m/min): 5 / 20
Brake Holding Capacity (tonne) 125
Rope Diameter (mm): 54
Rope Capacity (m): 240
System Pressure (bar): 310 / 260
Required Flow (L/min): 178
Brake Type: Hydraulic Band Brake
Dimensions (mm): 2775 x 2145 x 2350
Products are available off-the-shelf or custom-manufactured
