INI Australia is the provider of highly durable, reliable, German-engineered air winches for almost any industrial or offshore application. They provide fantastic lifting and pulling power without the hazard of burnt-out motors. An air winch is ideal for environments involving extreme heat, cold, wet or potentially explosive surroundings.
Please select from the following products:

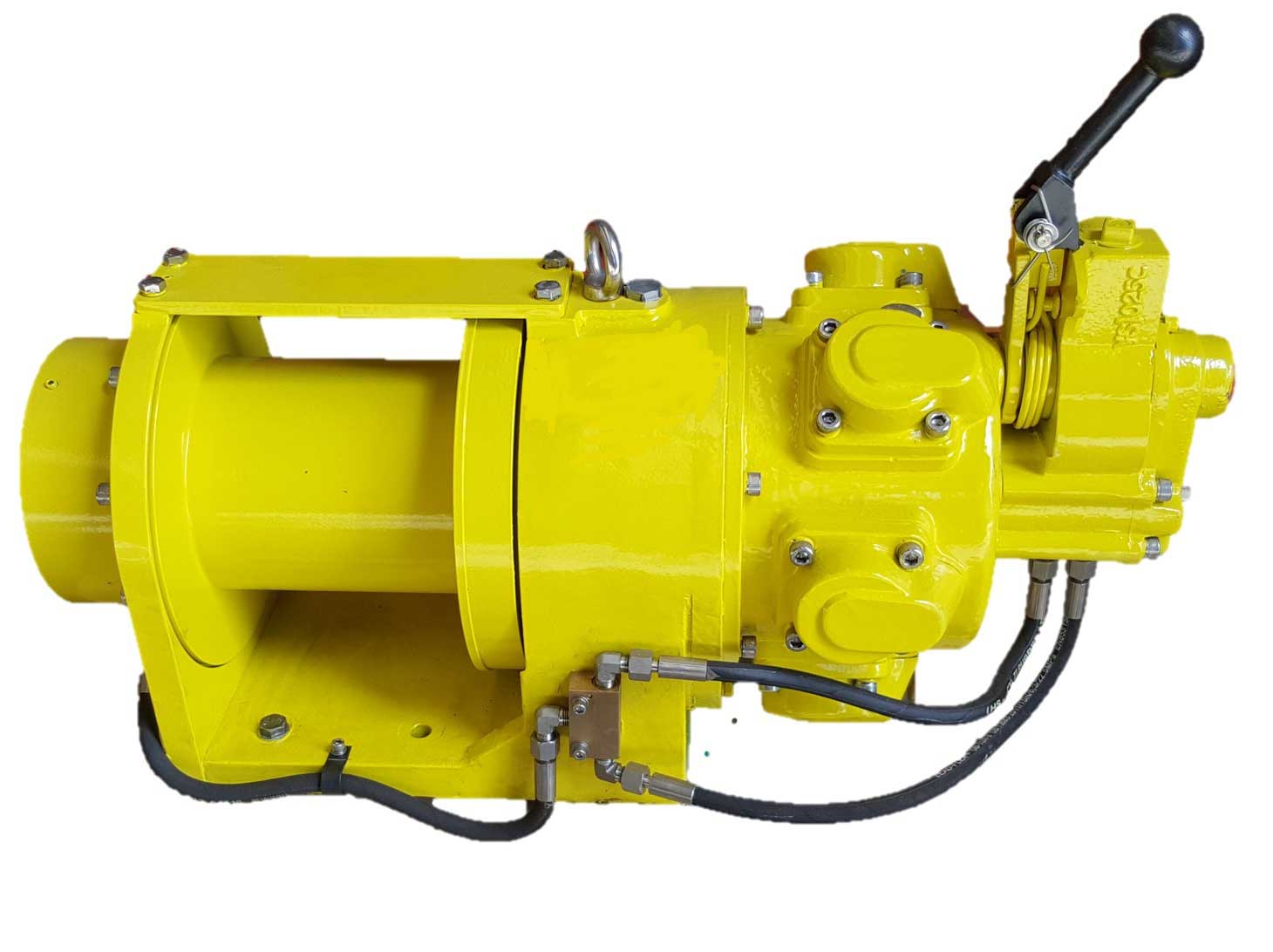

1 tonne Air Winch with automatic disk brake
Line Pull 1st Layer (tonne) 1
Line Speed (m/min): 0-24
Rope Diameter (mm): 10
Rope Capacity (m): 50
System Pressure (bar): 6-8
Air Consumption (L/S): 130
Brake Type: Failsafe Disc Brake
Dimensions (mm): 820 x 342 x 530

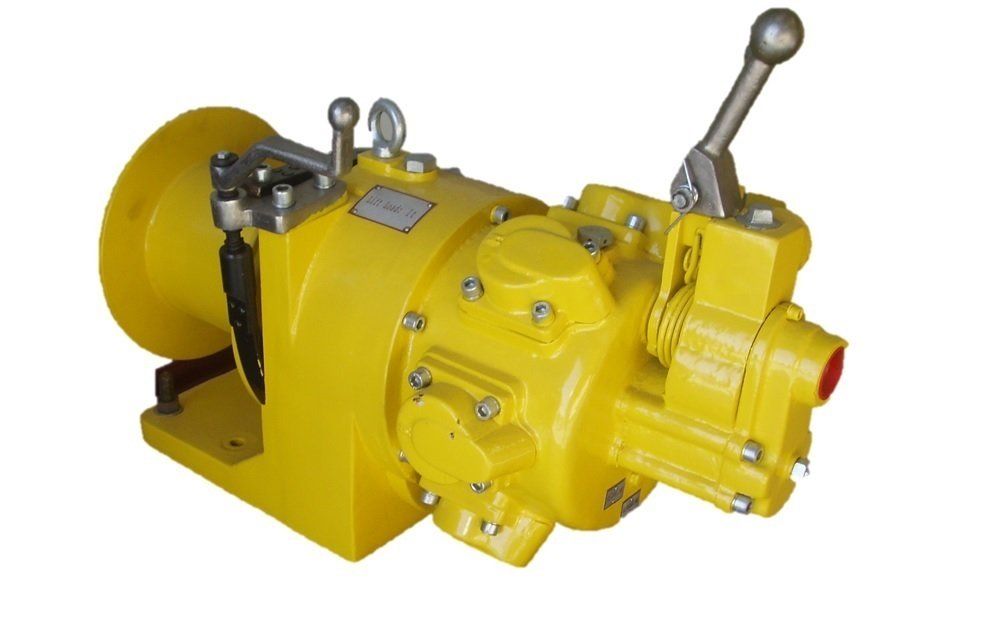

1 tonne Air Winch with manual hand brake
Line Pull 1st Layer (tonne) 1
Line Speed (m/min): 35-48
Rope Diameter (mm): 8
Rope Capacity (m): 120
System Pressure (bar): 6-8
Air Consumption (L/S): 130
Brake Type: Manual Hand Brake
Dimensions (mm): 722 x 342 x 530

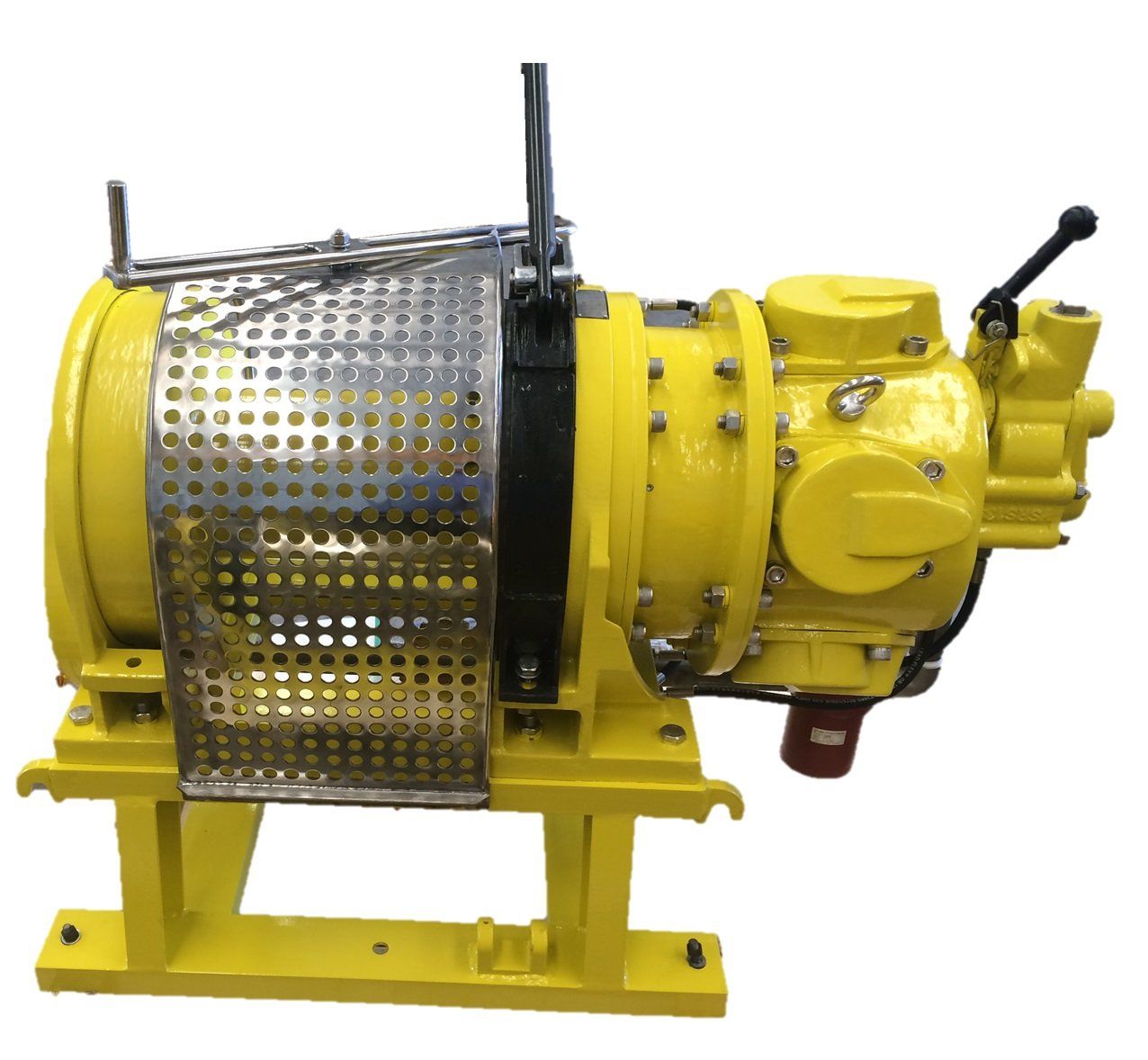

2T Air Winch with automatic disk brake
Line Pull 1st Layer (tonne) 2
Spec sheet
Enquire now
Line Speed (m/min): 0-12
Rope Diameter (mm): 16
Rope Capacity (m): 120
System Pressure (bar): 7-9
Air Consumption (L/S): 247
Brake Type: automatic disk brake
Dimensions (mm): 1150 x 820 x 1050

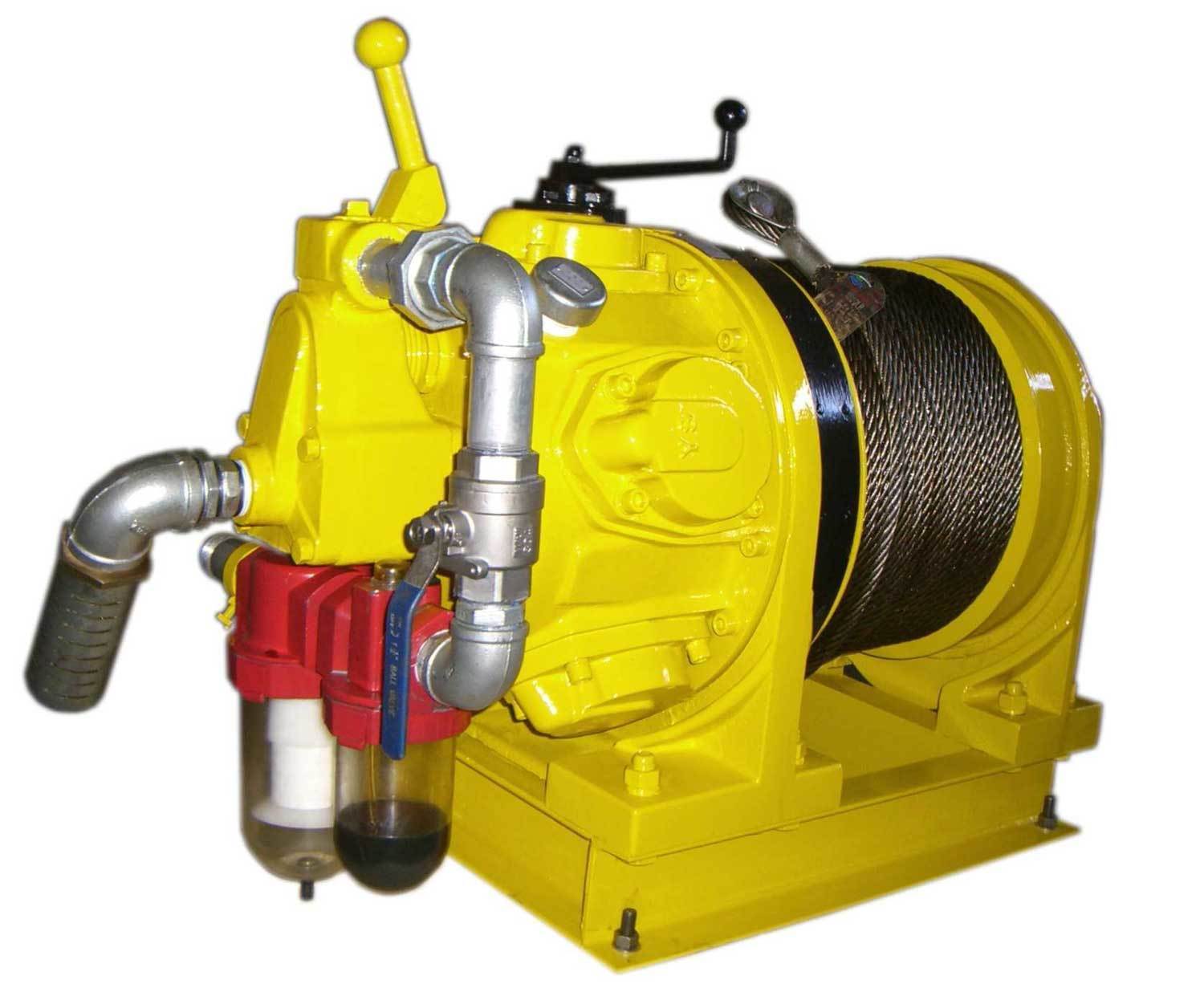

2 tonne Air Winch with manual hand brake
Line Pull 1st Layer (tonne) 2
Line Speed (m/min): 0-12
Rope Diameter (mm): 13
Rope Capacity (m): 50
System Pressure (bar): 6-8
Air Consumption (L/S): 200
Brake Type: Manual Hand Brake
Dimensions (mm): 940 x 410 x 750
3.5 tonne Air Winch with dual brake
Line Pull 1st Layer (tonne) 3.5
Line Speed (m/min): 17
Rope Diameter (mm): 16
Rope Capacity (m): 120
System Pressure (bar): 6-8
Air Consumption (L/S): 247
Brake Type: Dual Brake. Automatic band brake & Manual hand brake
Dimensions (mm): 1200 x 820x 780

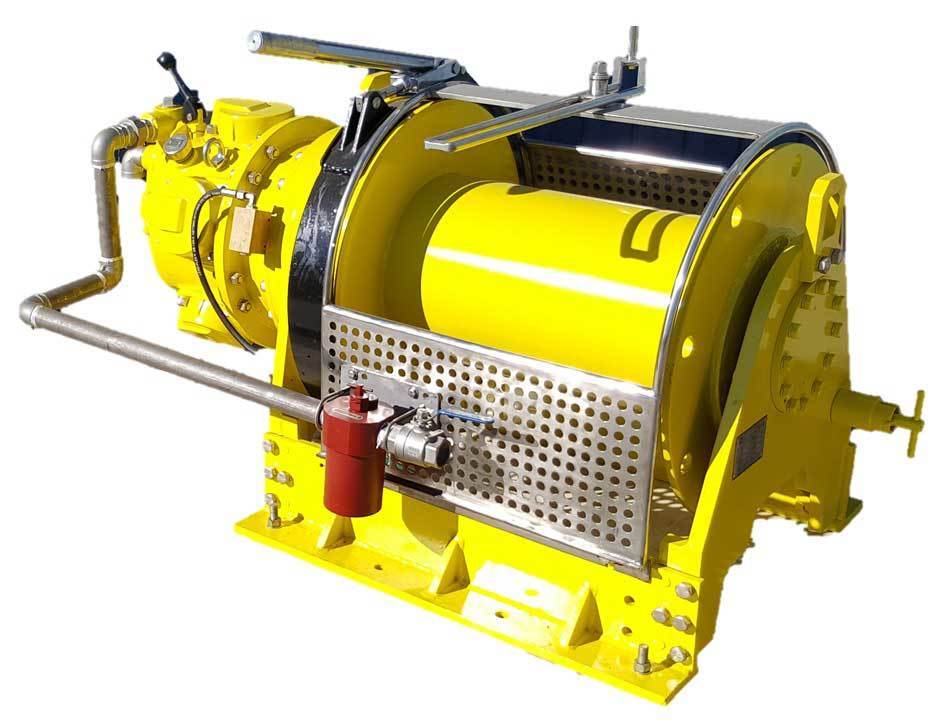

5T Air Winch with automatic disk brake
Line Pull Top Layer (tonne) 5
Spec sheet
Enquire now
Line Speed (m/min): 0-8
Rope Diameter (mm): 22
Rope Capacity (m): 120
System Pressure (bar): 7-9
Air Consumption (L/S): 247
Brake Type: Dual Brake. Automatic disc brake
Dimensions (mm): 2000 x 1100 x 1100

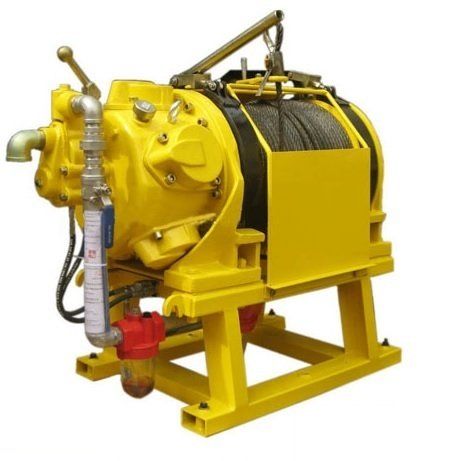

5T Air Winch with manual brake
Line Pull Top Layer (tonne) 5
Line Speed (m/min): 17
Rope Diameter (mm): 16
Rope Capacity (m): 120
System Pressure (bar): 6-8
Air Consumption (L/S): 247
Brake Type: Dual Brake. Hand & foot
Dimensions (mm): 1200 x 920 x 989

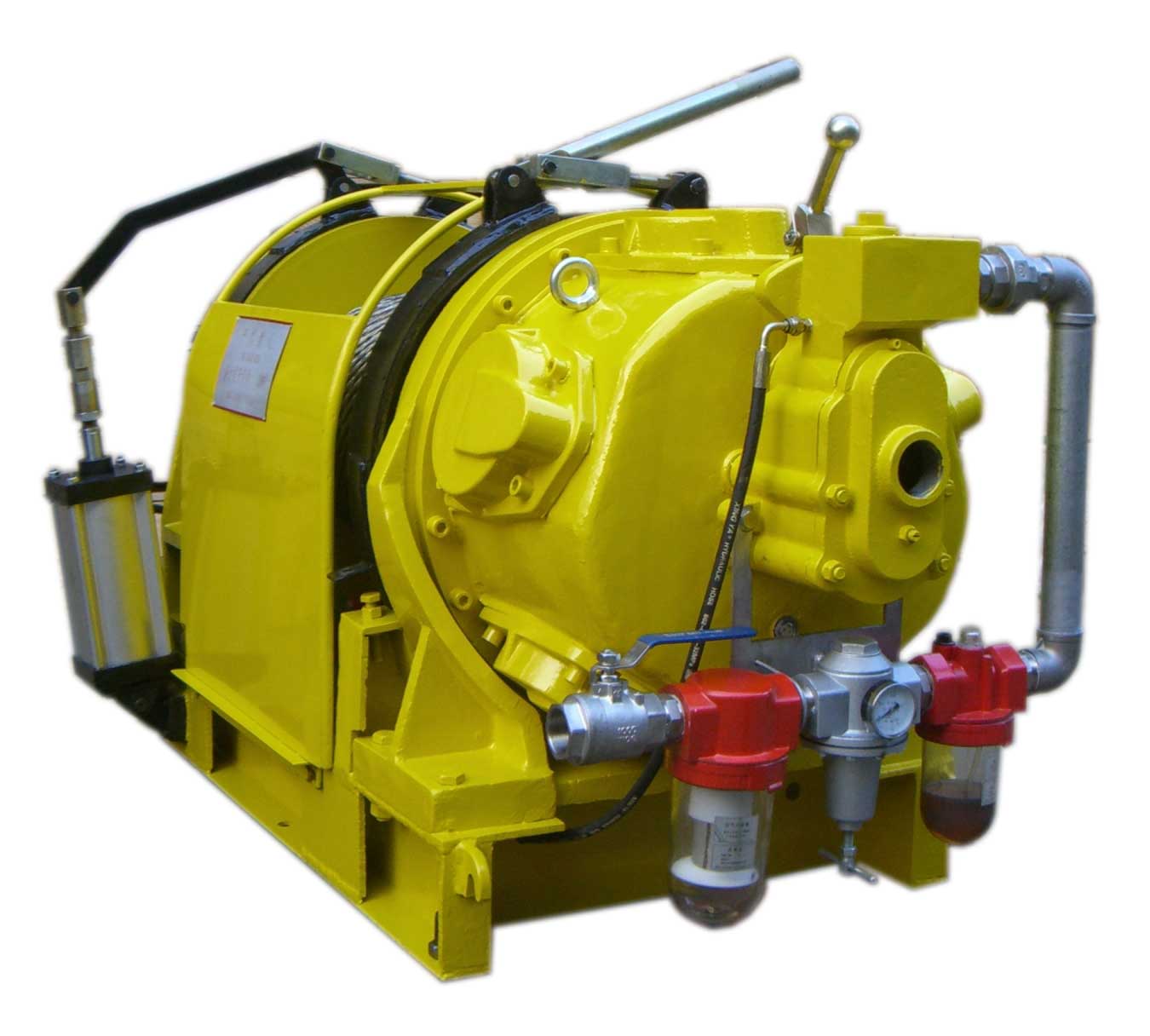

10T Air Winch /w dual brake
Line Pull Top Layer (tonne) 10
Spec sheet
Enquire now
Line Speed (m/min): 20
Rope Diameter (mm): 24
Rope Capacity (m): 200
System Pressure (bar): 6-8
Air Consumption (L/S): 400
Brake Type: Dual Brake. Automatic band brake & Manual hand brake
Dimensions (mm): 1638 x 960 x 930
We offer quality, German-engineered winches
